Programmable Video Player

Using these commands you will be able to insert mp4 videos in your projects.

With VideoPlayer commands you can control the RaspBerry GPIO via the Videoplayer timeline.

Synchronizing timeline video and activating and control actuators, sound, light, will not be a problem.


Features:

Load Video from Youtube

Load Video from USB-KEY/USB-HDD

Programmable Timeline

Programmable for load sub-function

You can configure video properties with these commands:


videoplayer_dimension

videoplayer_xy

video_ctrl

video_pause

video_player and video_close.

below you will find the description of each individual command.

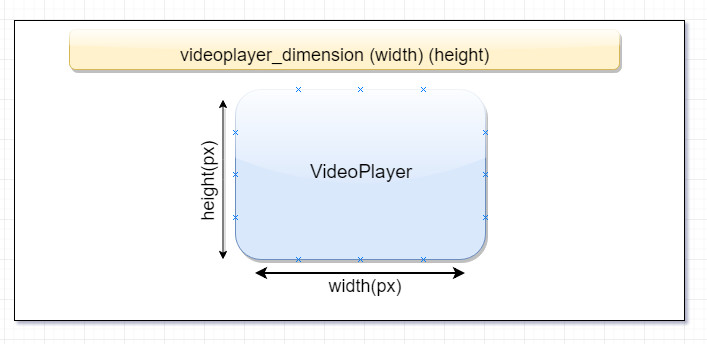

videoplayer_dimension (WIDTH) (EIGHT)


Set the dimension of the videoplayer, Width and Height are expressed in pixels.

Example

videoplayer_dimension 640 420
#...

videoplayer_xy (X) (Y)


Example

videoplayer_xy 400 50
#...

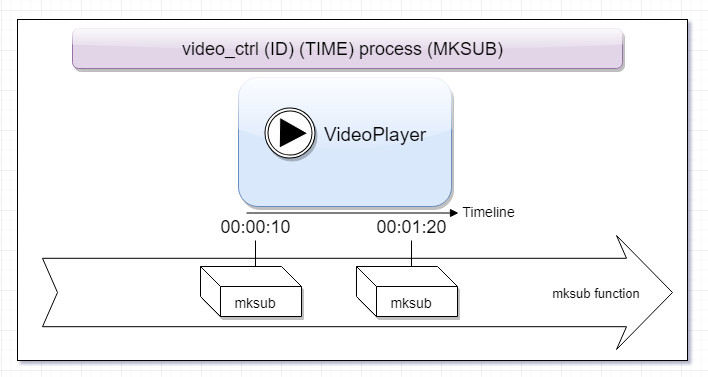

video_ctrl (ID) (TIME) process (MAKESUB_ID)


Example

# create function 'playsound't
make_sub playsound
sub playsound mp3_load sound.mp3
sub playsound sleep 5

# load 'playsound' function for starting at time :00:00:23
video_ctrl video_id 00:00:23 process playsound

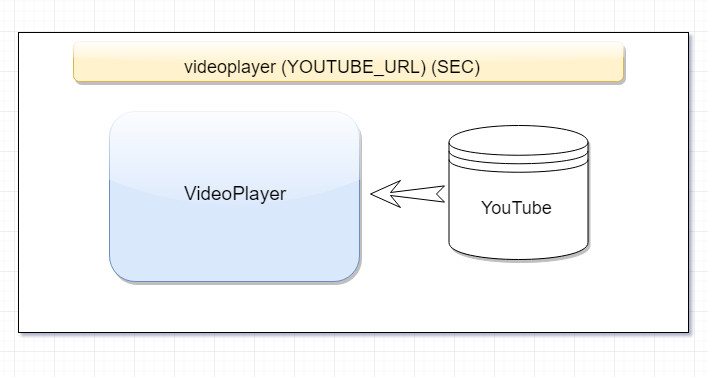

video_player (YOUTUBE_VIDEO)

video_player (FILENAME) hd


Example in SgneepBox-Script:

# create function 'playsound'
make_sub your_sound
sub your_sound mp3_load sound.mp3
sub your_sound sleep 5

# set 'your_sound' function for starting at time 00:00:23 (hh:mm:ss)
video_ctrl video_id 00:00:23 process myfunction

# play video from youtube(streaming) or from USB/HDD:
video_player http://www.youtube.com/watch?v=VideoCode
#OR
# video_player filename.mp4 hd --> for load video from USB/HDD

#...

video_pause


Example

video_player http://www.youtube.com/watch?v=*VideoCode
sleep 10

#PAUSE
video_pause
sleep 10

#PLAY
video_pause

#...
sleep 10
#close videoplayer
#video_close
